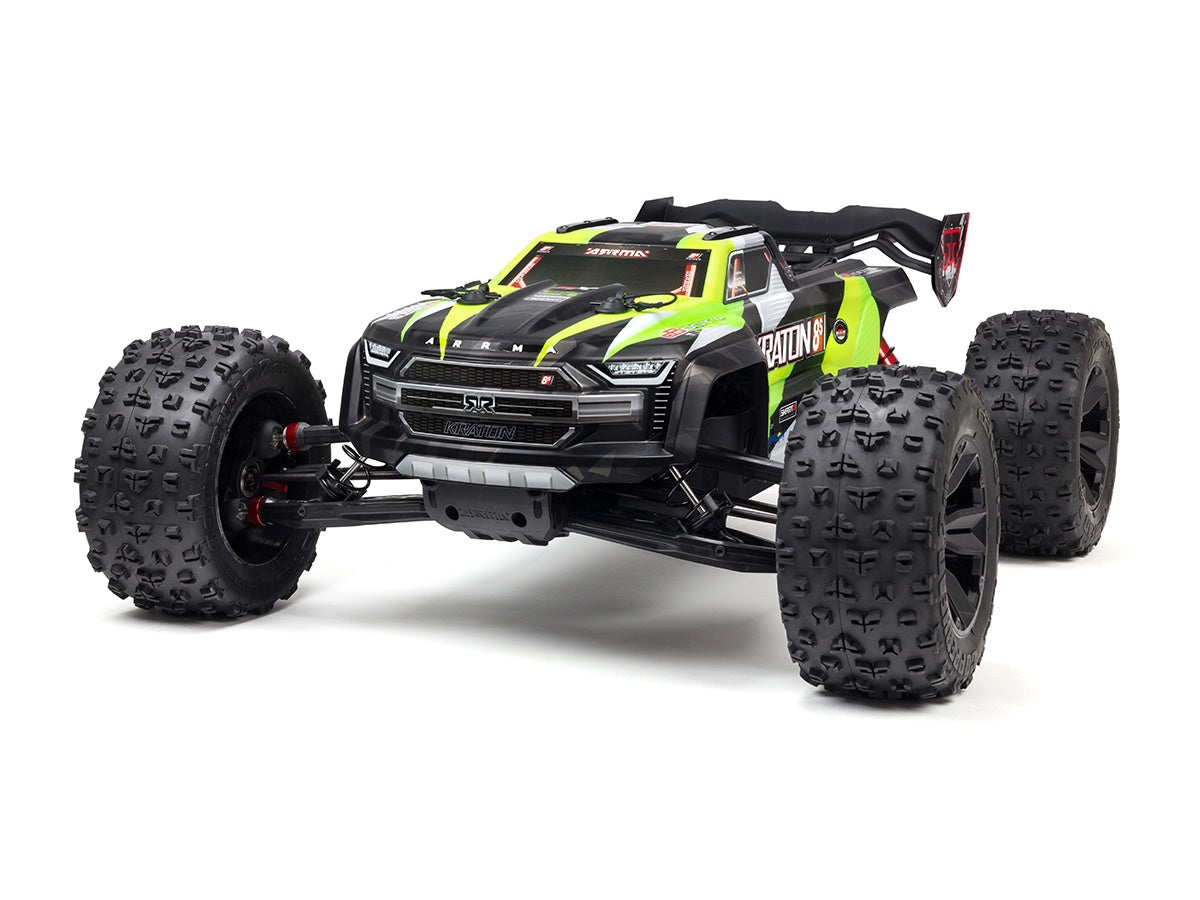

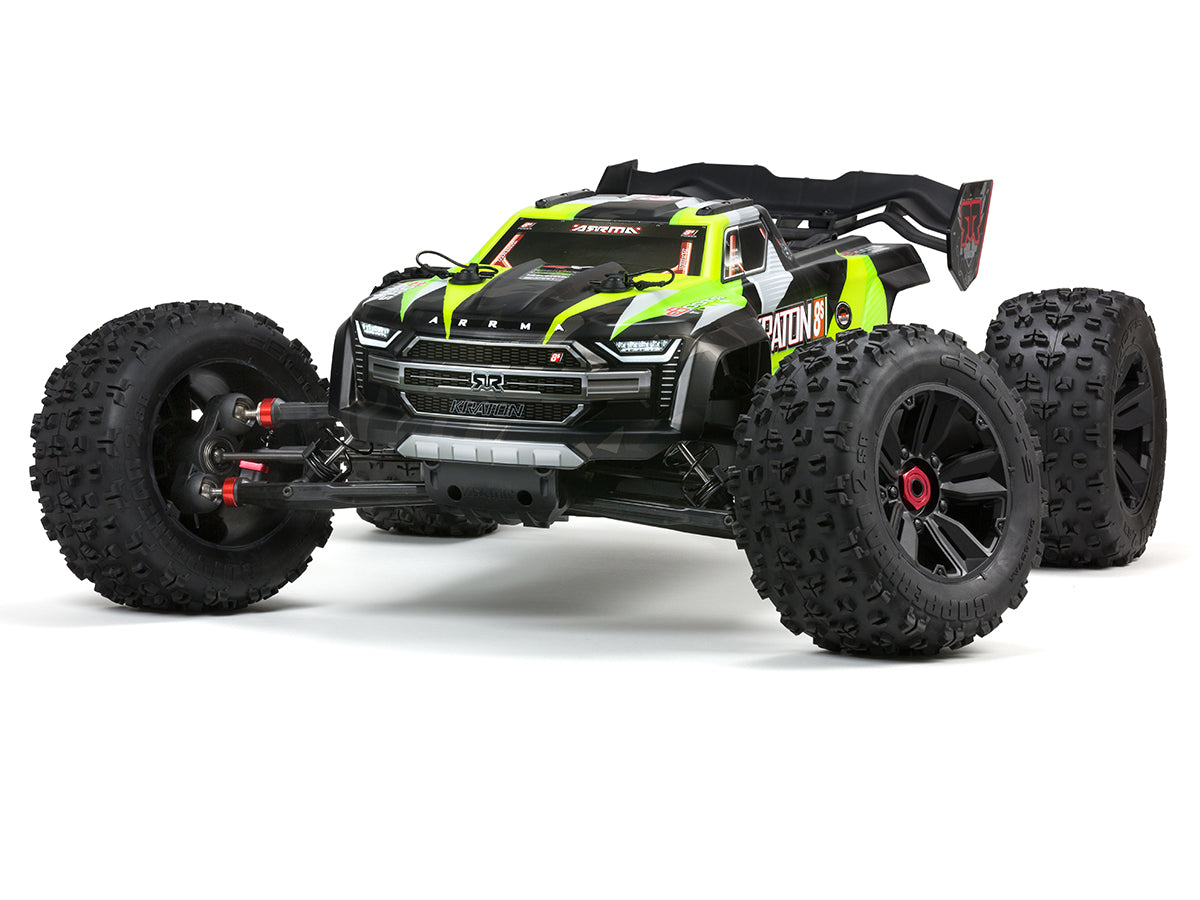

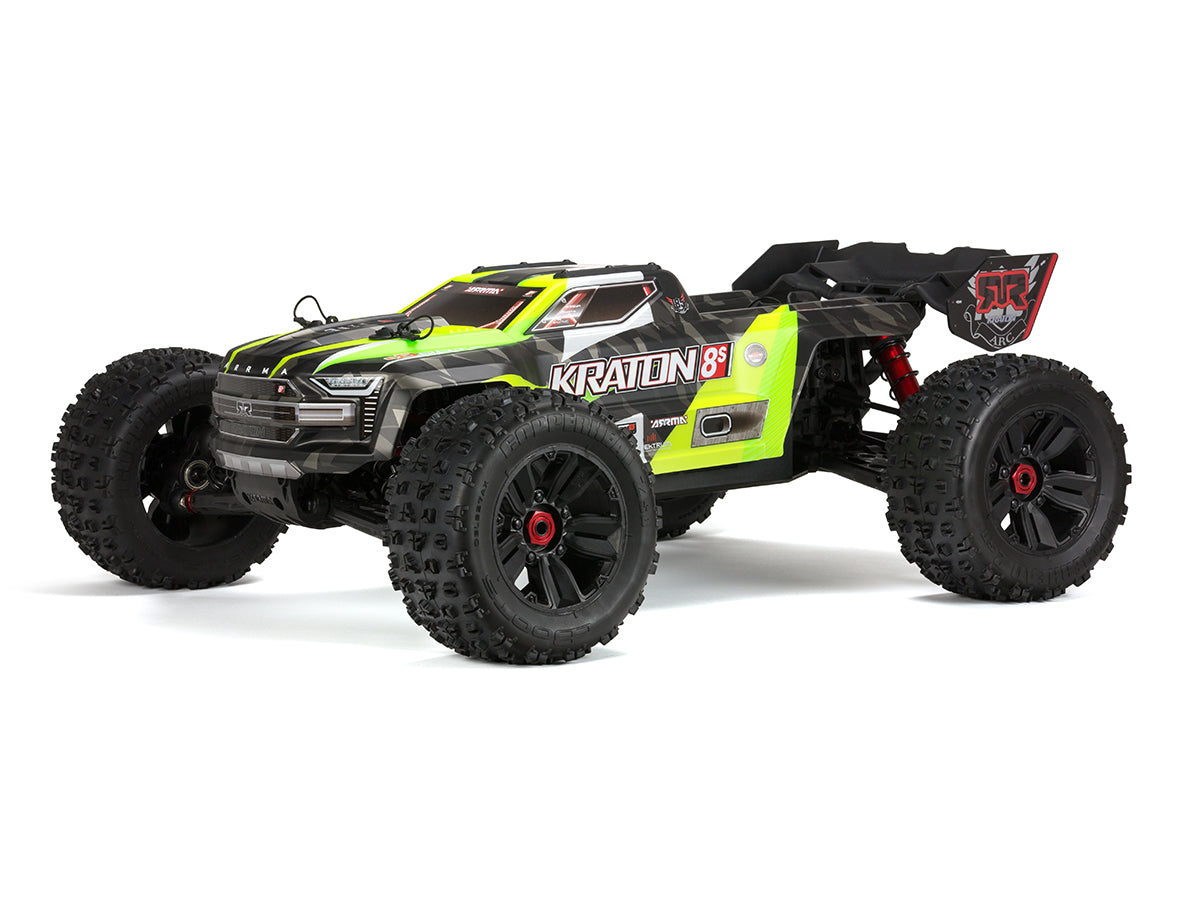

Kraton 8S 4x4 BLX 1/5 Speed Monster Truck - Green
These are the latest version 2 Kraton 8S Now includes the DX3 radio and the following updates:
- Spektrum DX3 Radio
- ARA320477 Brace Rod Ends W/Pins And Retainers (4)
- ARA320582 Centre Tower
- ARA320592 Brace Mount Pin 67mm (2)
- ARA320594 Chassis Brace Bar 211mm
- ARA320593 Chassis Brace Bar 164mm
- ARA320597 Rear Lower Chassis Brace
Experienced bashers can shred big-time with the 1/5 scale ARRMA® KRATON™ 8S BLX 4WD Speed Monster Truck. DESIGNED FAST and DESIGNED TOUGH, it’s ready-to-run out of the box and comes with nearly everything you need — just add your preferred batteries and charger. Download the free Spektrum™ Dashboard App to your mobile device to view motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time. Dial-in extra stability with the radio’s AVC® system to carve corners and nail jumps without letting up on the throttle. The KRATON 8S BLX 4WD is capable of 55+ MPH speeds in optimum driving conditions using an 8S LiPo (2 x 4S LiPo batteries) and optional pinion gear (available separately). The speed potential is amazing — and you’ll be able to use it all.
Overview

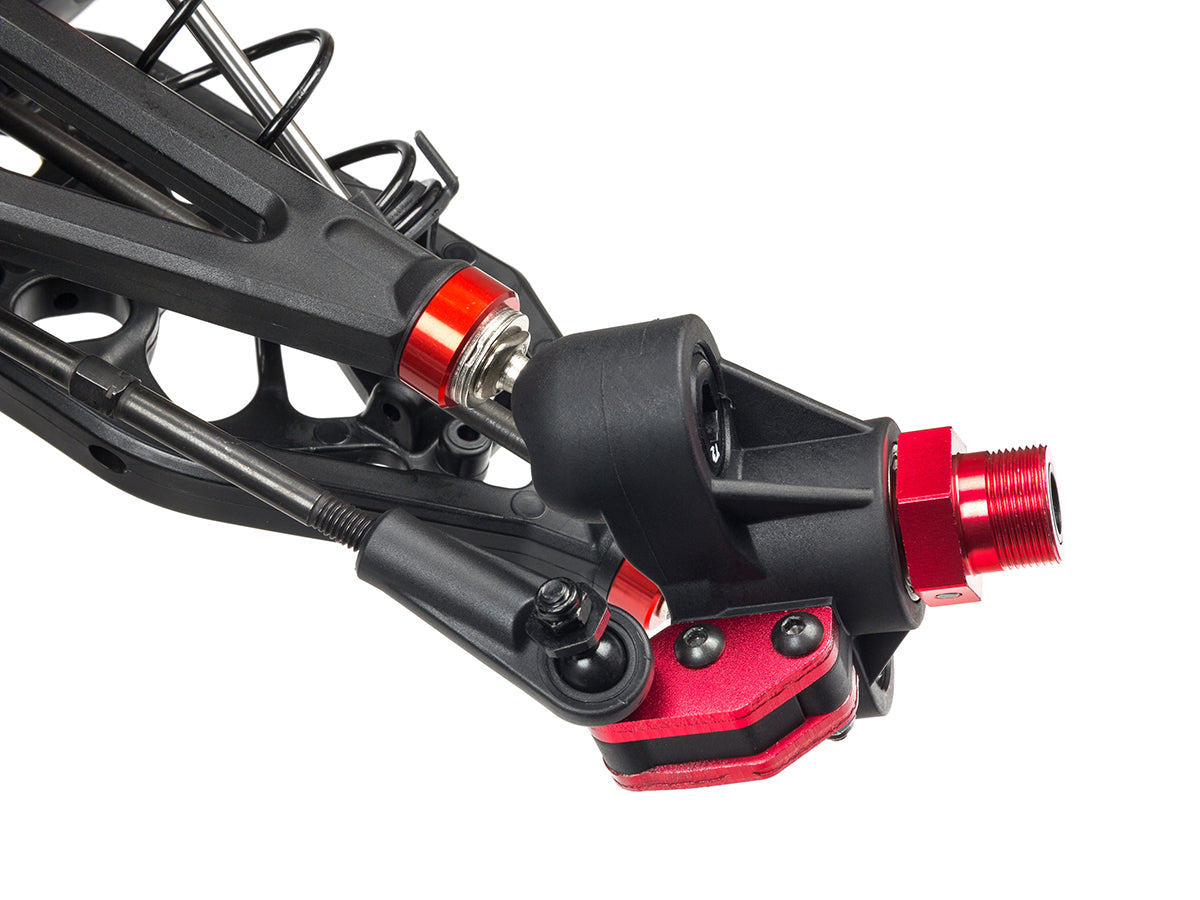

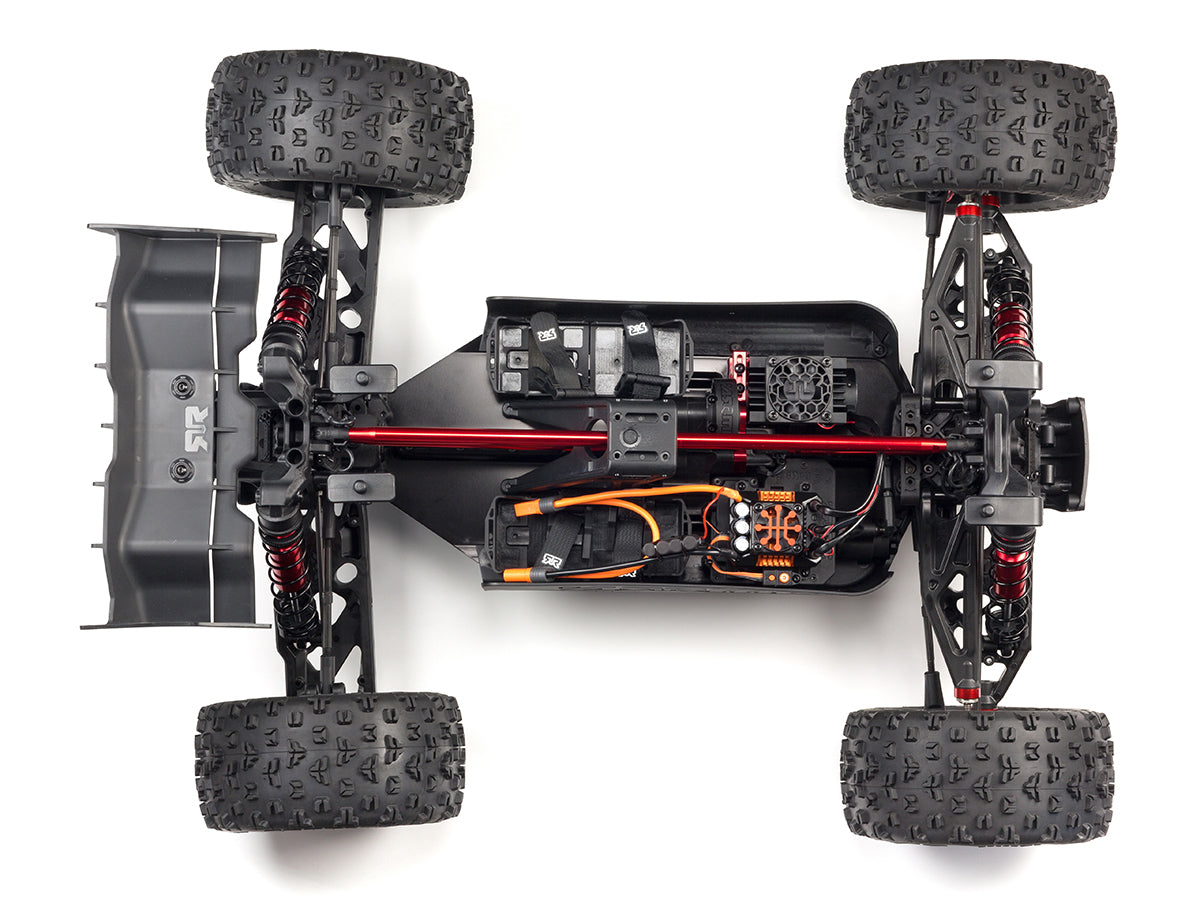

Bigger than big and engineered for brute power and toughness, the ARRMA® 1/5 scale KRATON™ 8S BLX 4WD Speed Monster Truck takes your bashing ability to the next level. Its metal-reinforced design lets you blast up, over, and through bruising obstacles without worry. Metal shafts, turnbuckles and outdrives, plus all-metal internal gears, give the drivetrain and suspension system unstoppable strength. The anodized aluminum chassis plate features composite side pods and a triangular center brace for maximum durability. Ultra-thick composite front and rear shock towers hold massive 20mm bore, oil-filled adjustable shocks that soak-up bumps and jolts.

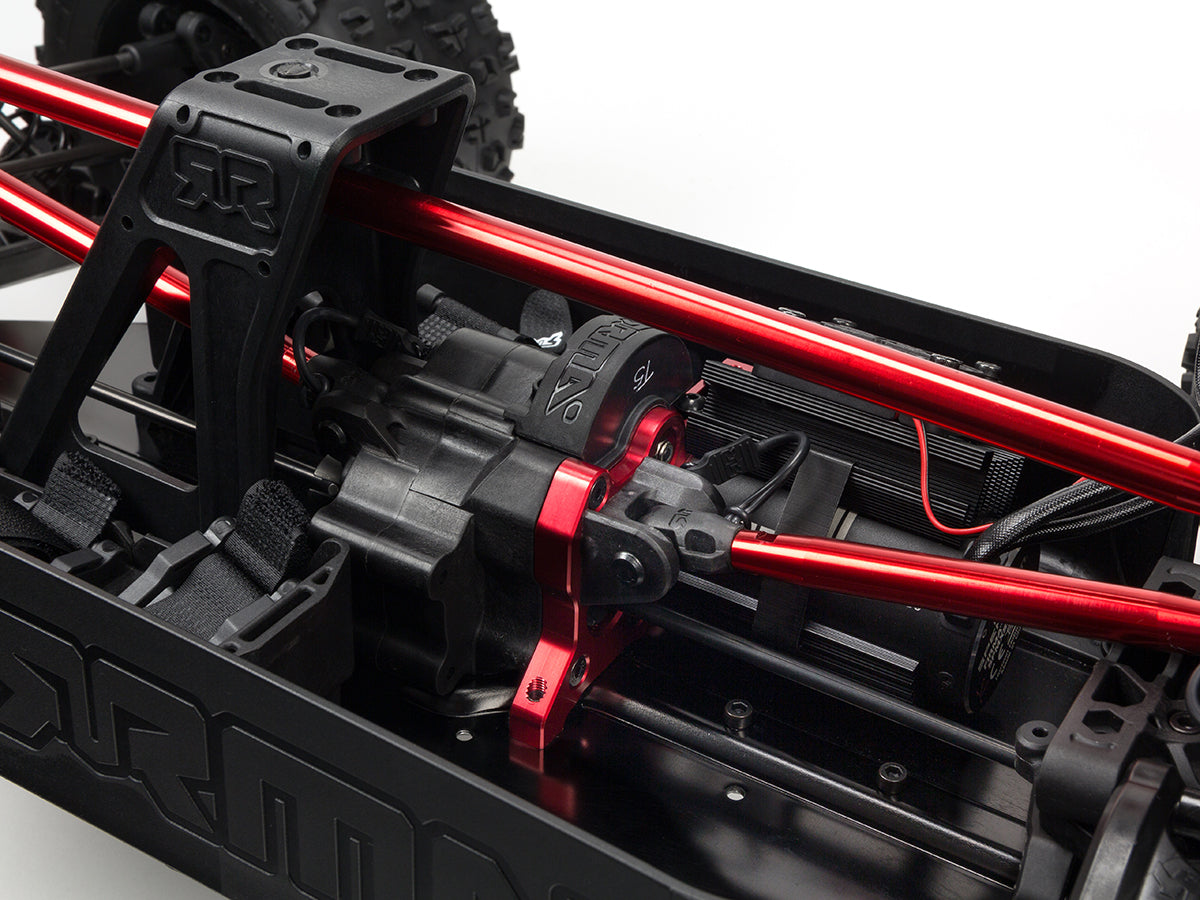

The power that sends the KRATON™ 8S BLX 4WD Speed Monster Truck charging easily over challenging terrain comes from its 1250Kv Spektrum™ Firma™ brushless motor. The torque and acceleration is incredible. For quick access, the motor is mounted with three bolts onto a sliding aluminum mount.

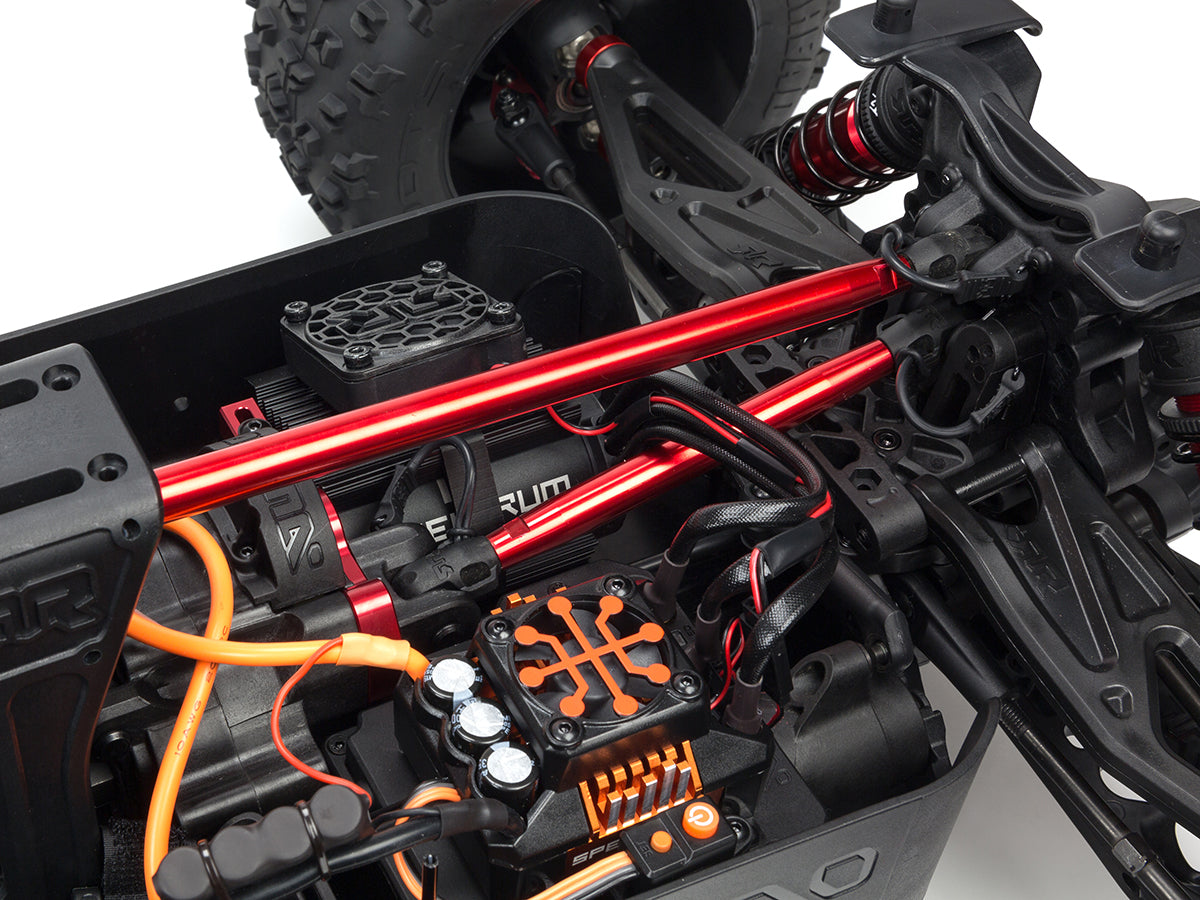

The waterproof electronics module — also designed for easy access — houses and protects more innovative Spektrum™ equipment. ARRMA® has equipped the KRATON™ 8S BLX 4WD Speed Monster Truck with a state-of-the-art Firma™ Smart 160A ESC and SR6100AT AVC® (Active Vehicle Control®) receiver.

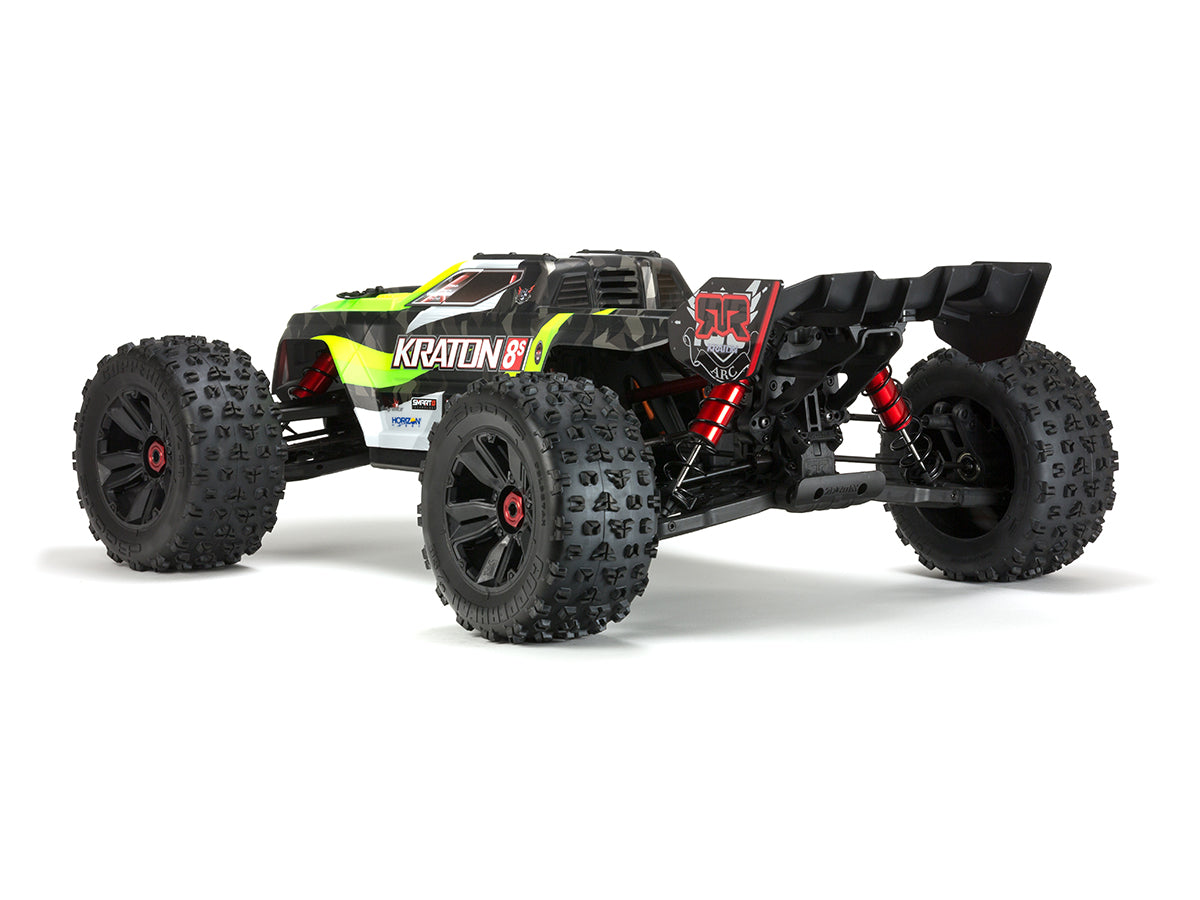

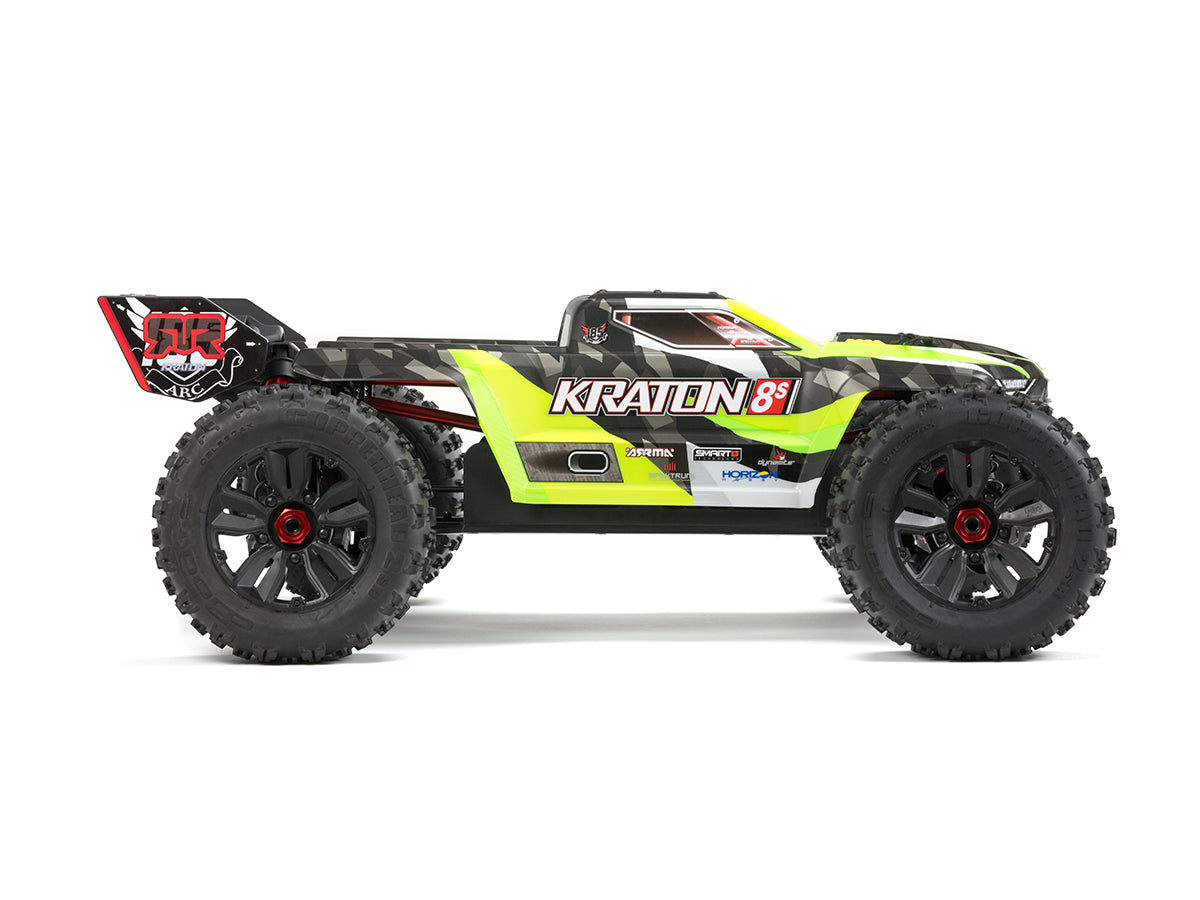

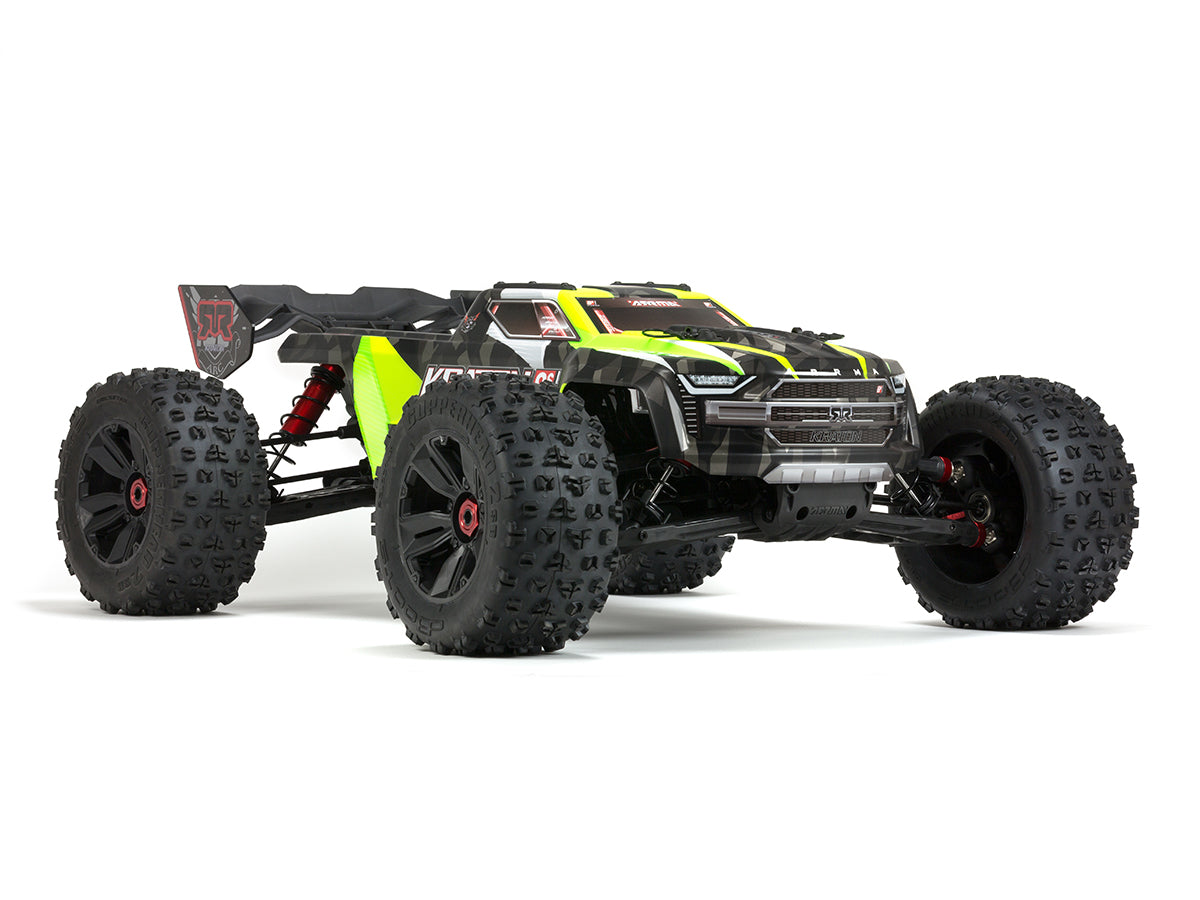

The ultra-tough KRATON™ truck body with high-downforce wing is available factory trimmed, painted and decaled in two striking color schemes. A center protection tower on the chassis interfaces with the roll cage for increased body durability. It all rides on multi-split spoke wheels with strong, durable aluminum wheel hubs, and multi-terrain dBoots® COPPERHEAD™ 2 SB tires with a tread pattern designed for extreme, all-terrain action.
Features:

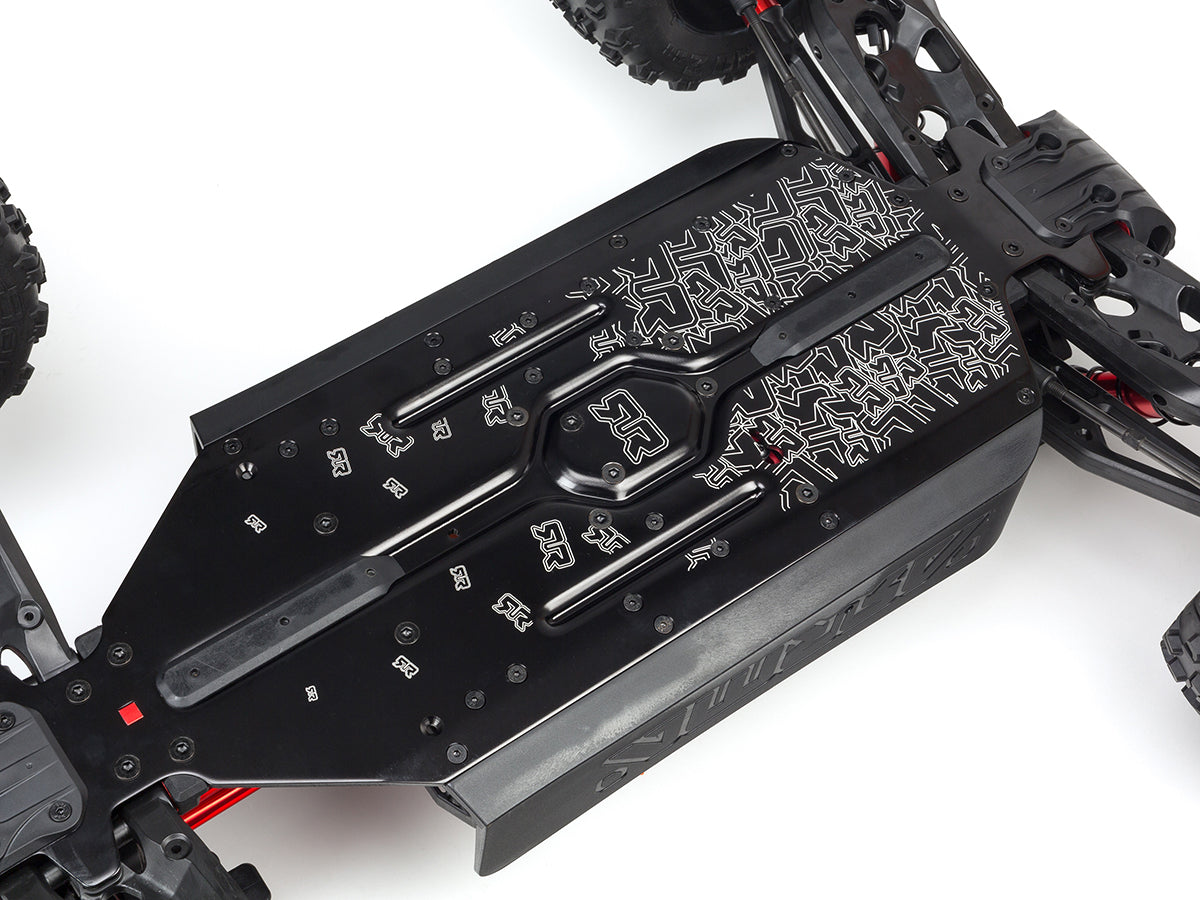

- Laser-etched aluminum anodized chassis plate
- Strong composite chassis side pods

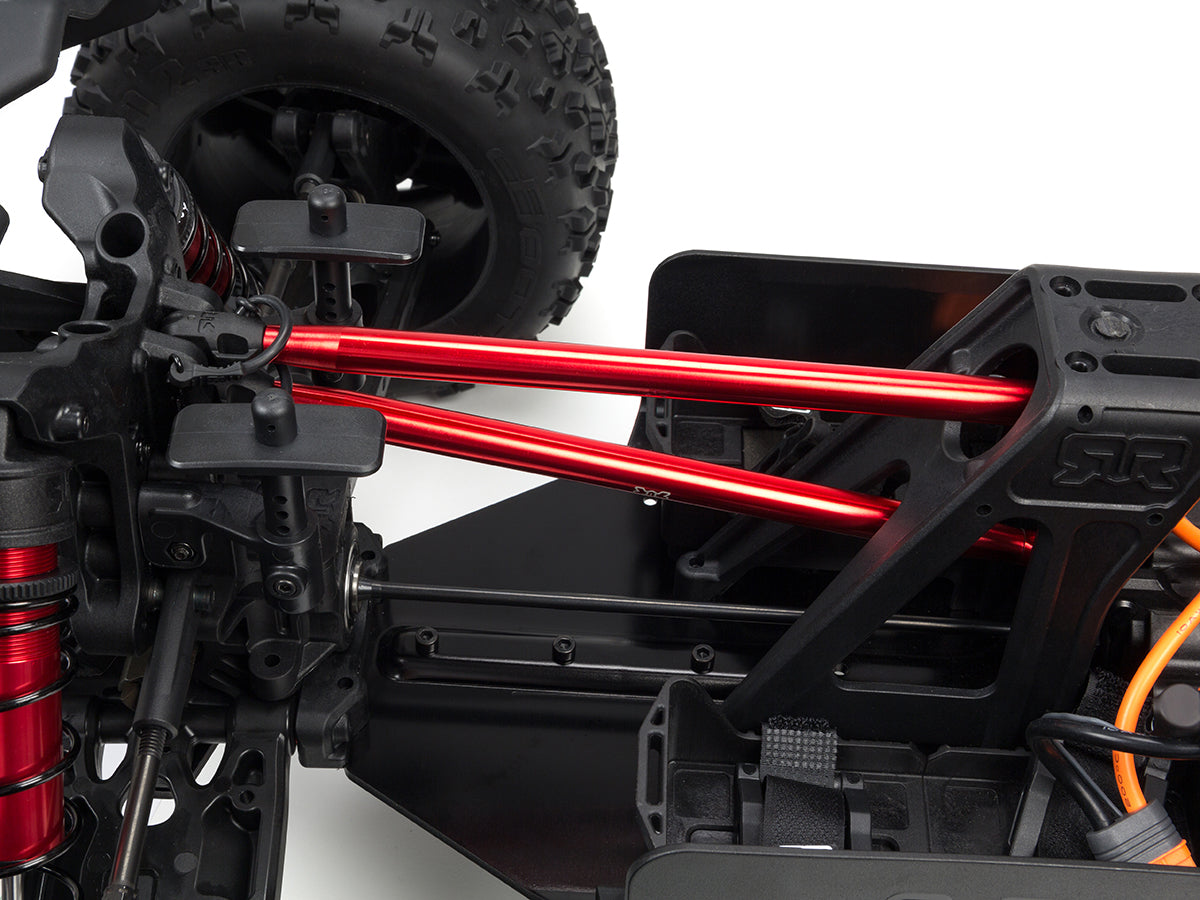

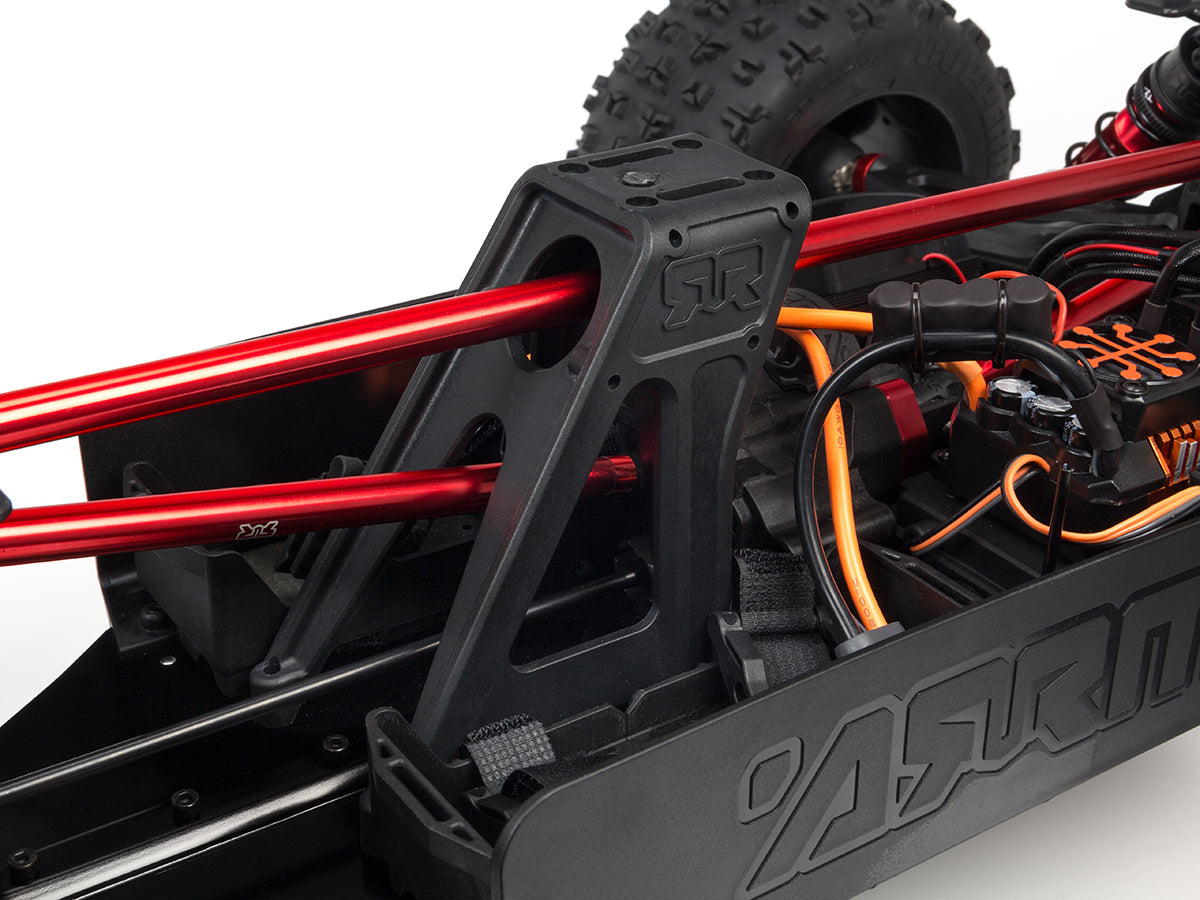

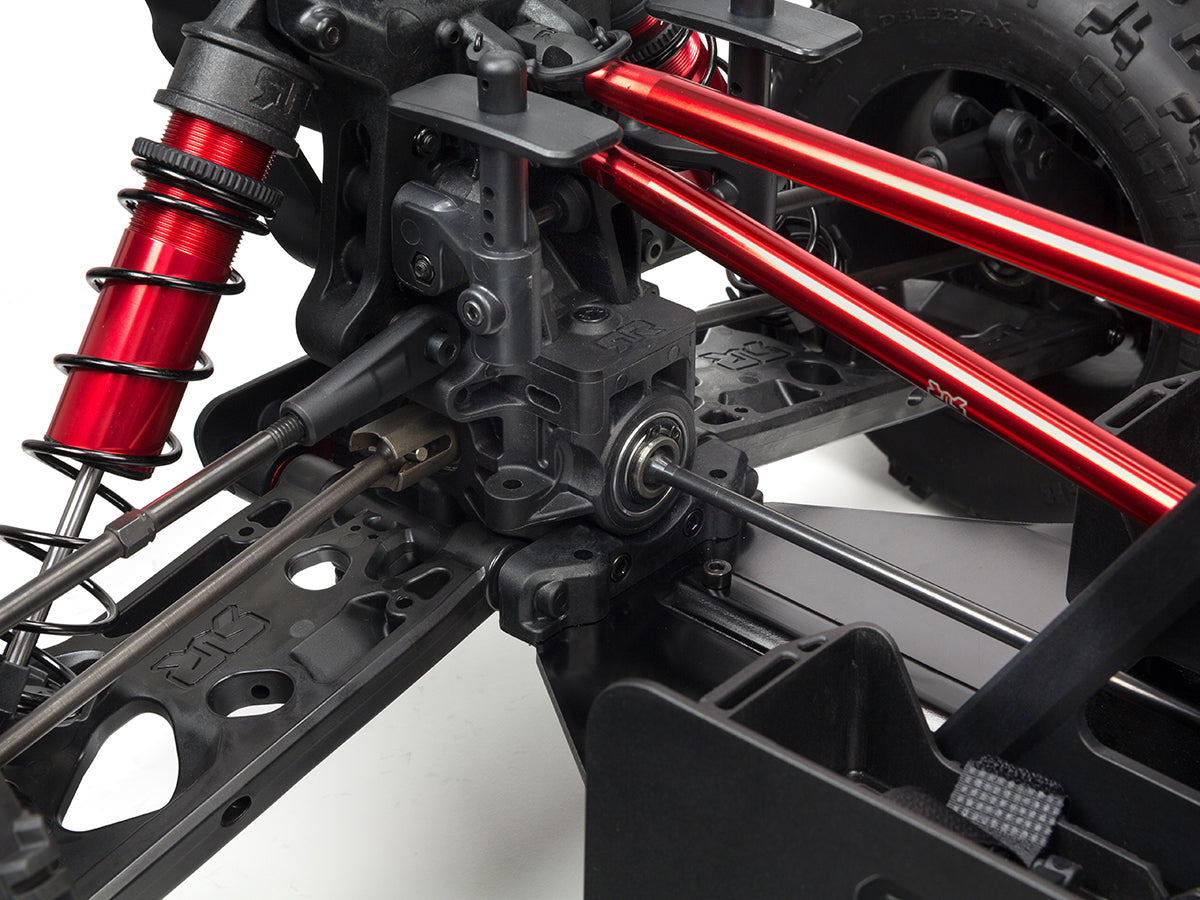

- Triangular structured center brace system for maximum durability

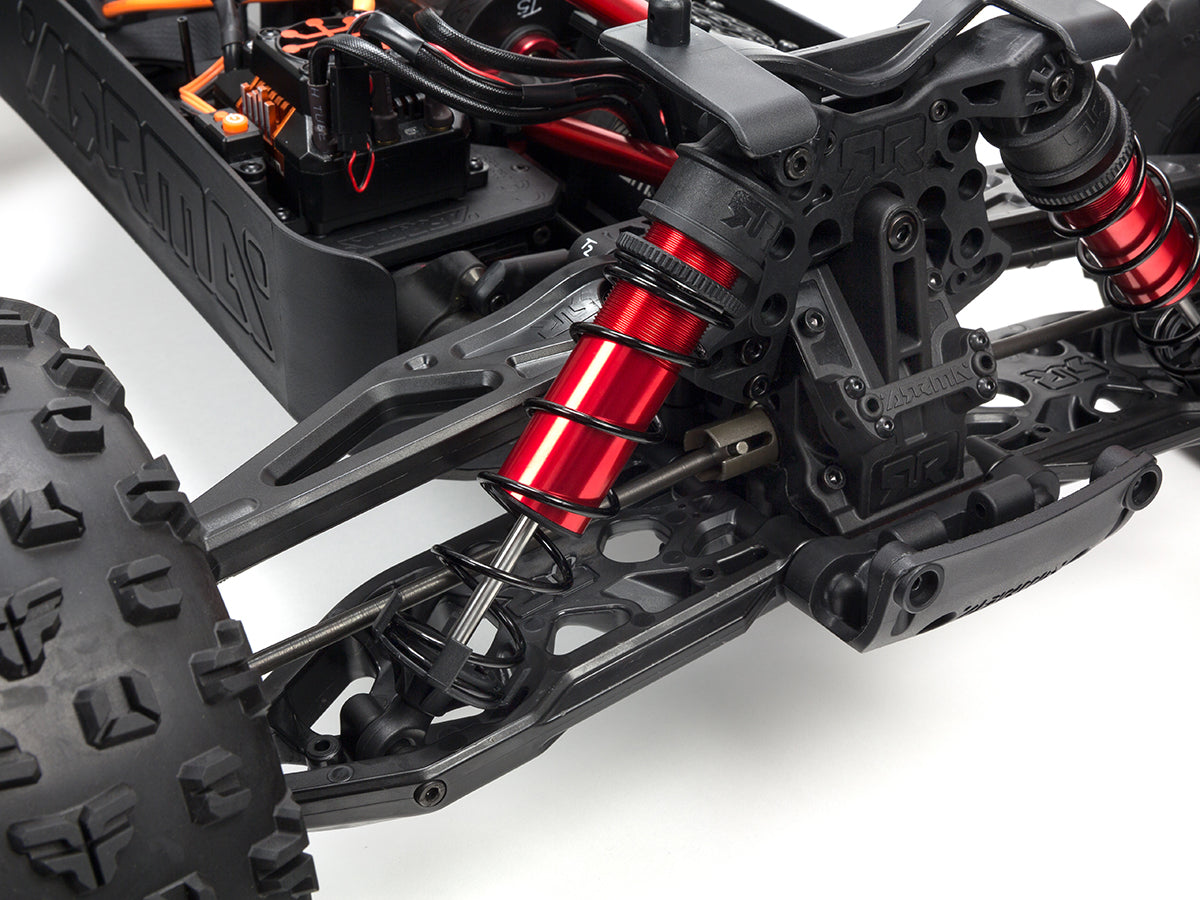

- Oil-filled adjustable shocks with massive 20mm bore
- Ultra-thick composite front and rear shock towers

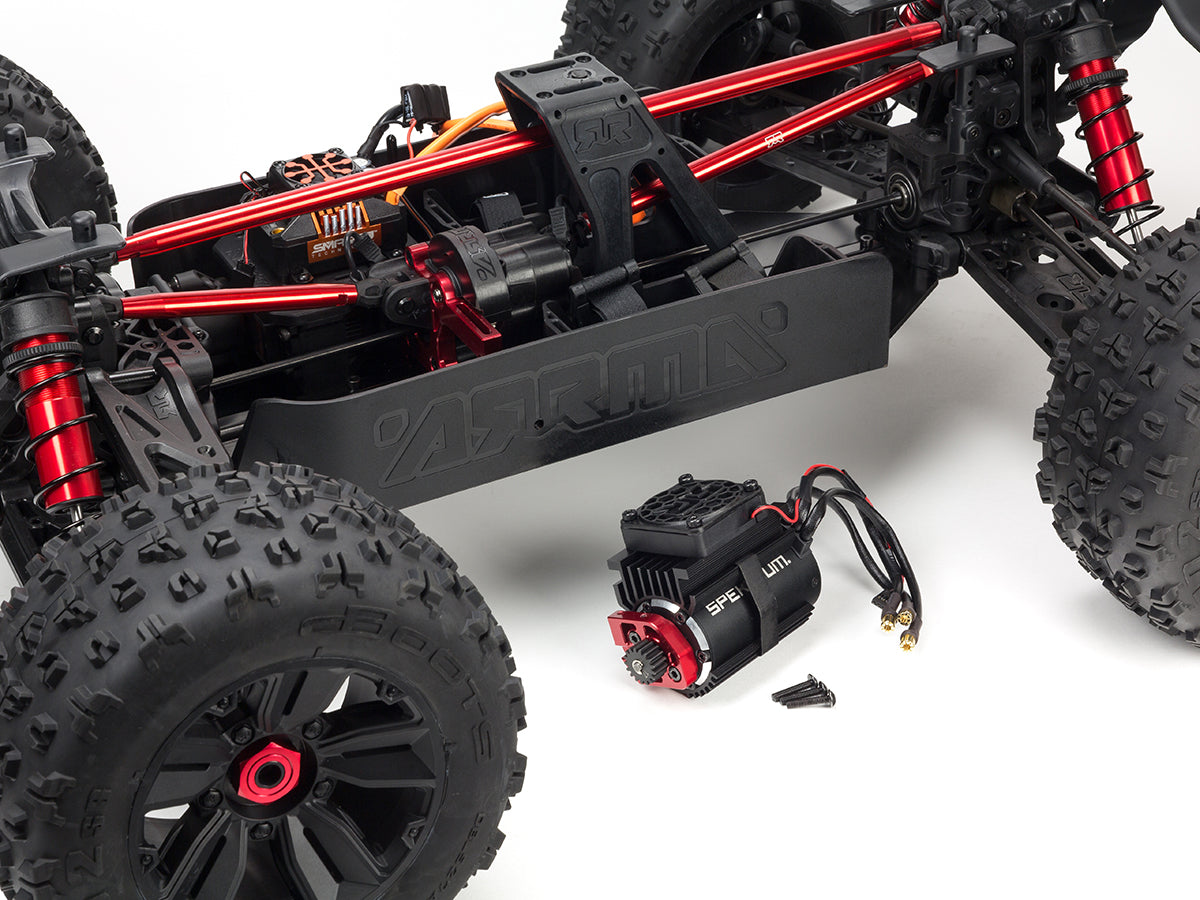

- Easy-access 3-bolt sliding motor mount for quick motor removal
- Aluminum motor mount and hubs
- Heavy-duty drivetrain
- Durable steel driveshafts throughout

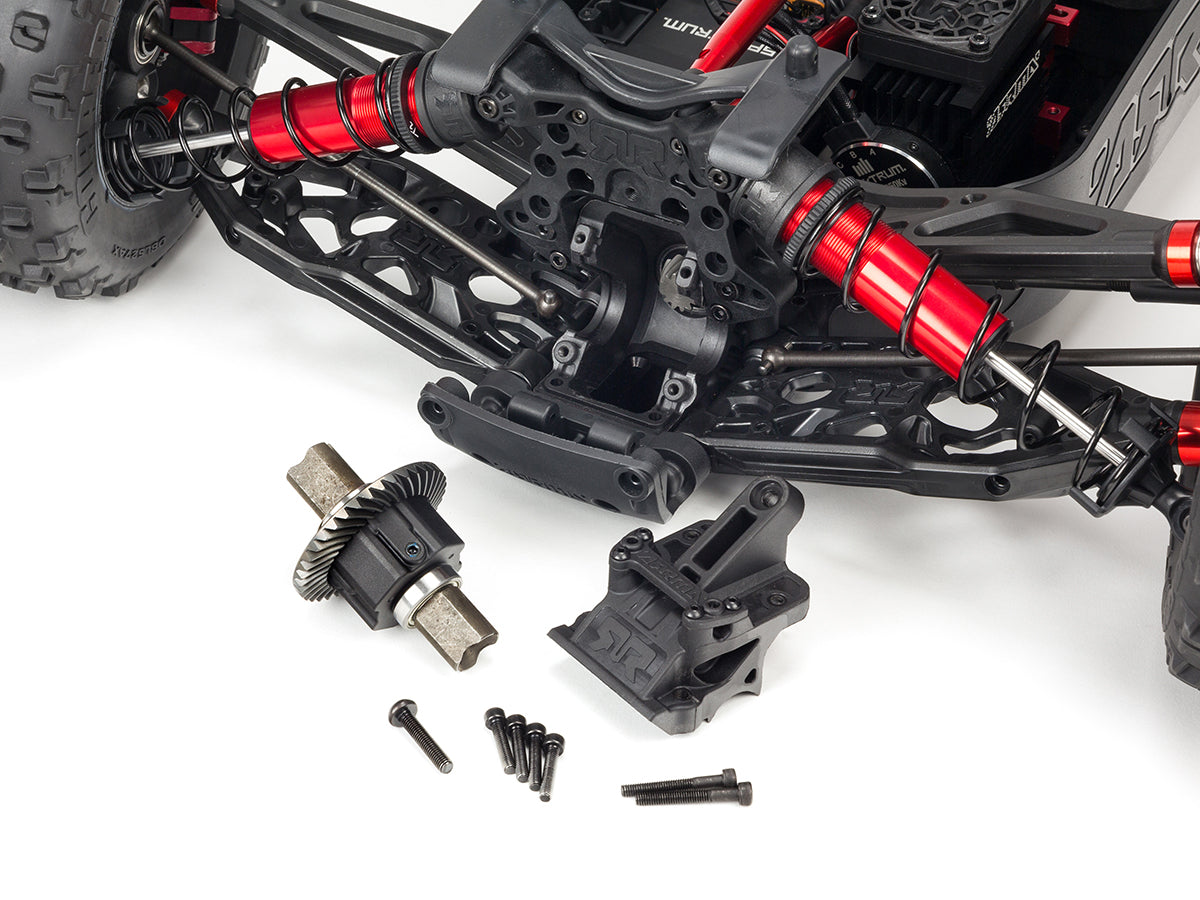

- Easy-access front and rear diff module design
- All-metal diff outdrives and gearbox internals

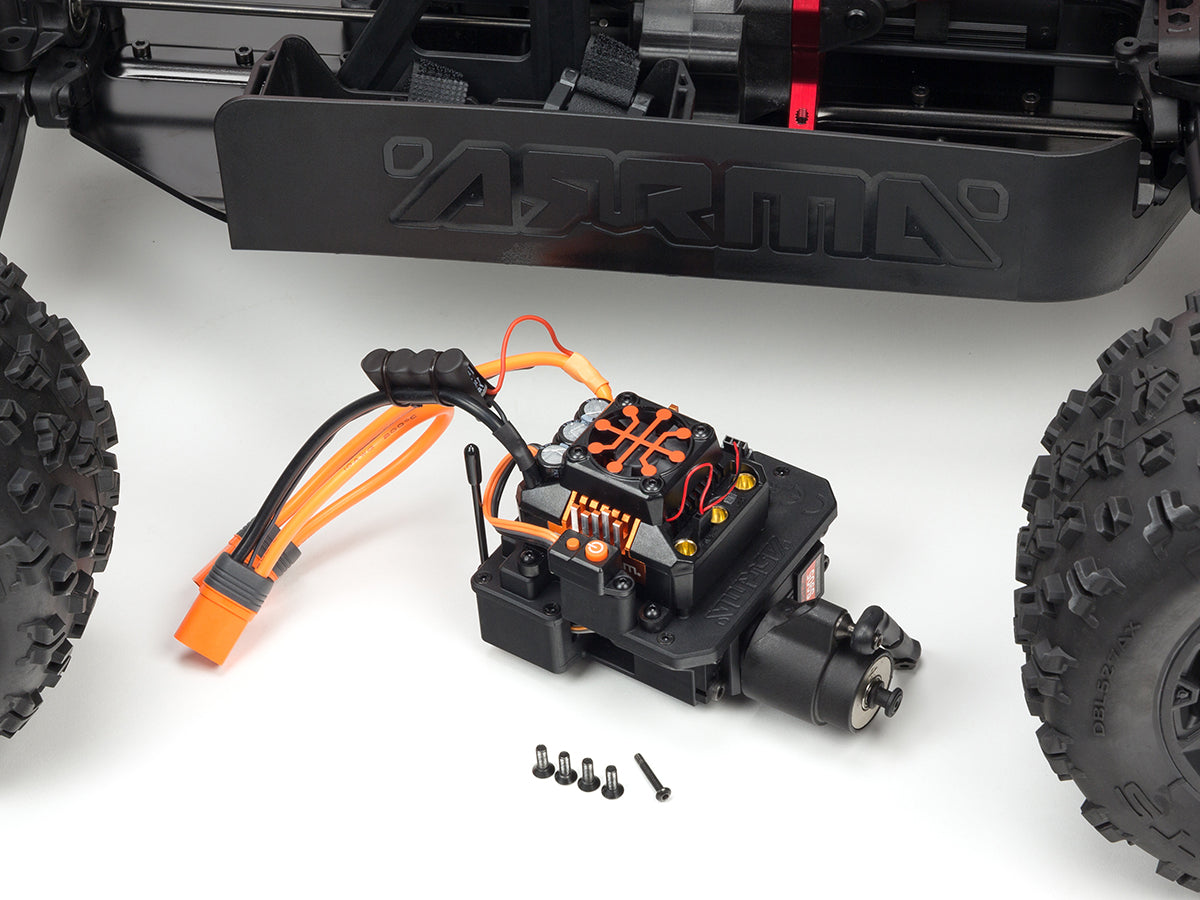

- Easy-access waterproof electronics module
- Heavy-duty dual spring servo saver
- Multi-split spoke wheels
- Durable wheel hubs for increased strength
- Multi-terrain dBoots® COPPERHEAD™ 2 SB tires
- Ultra-tough truck body and decals
- High downforce wing

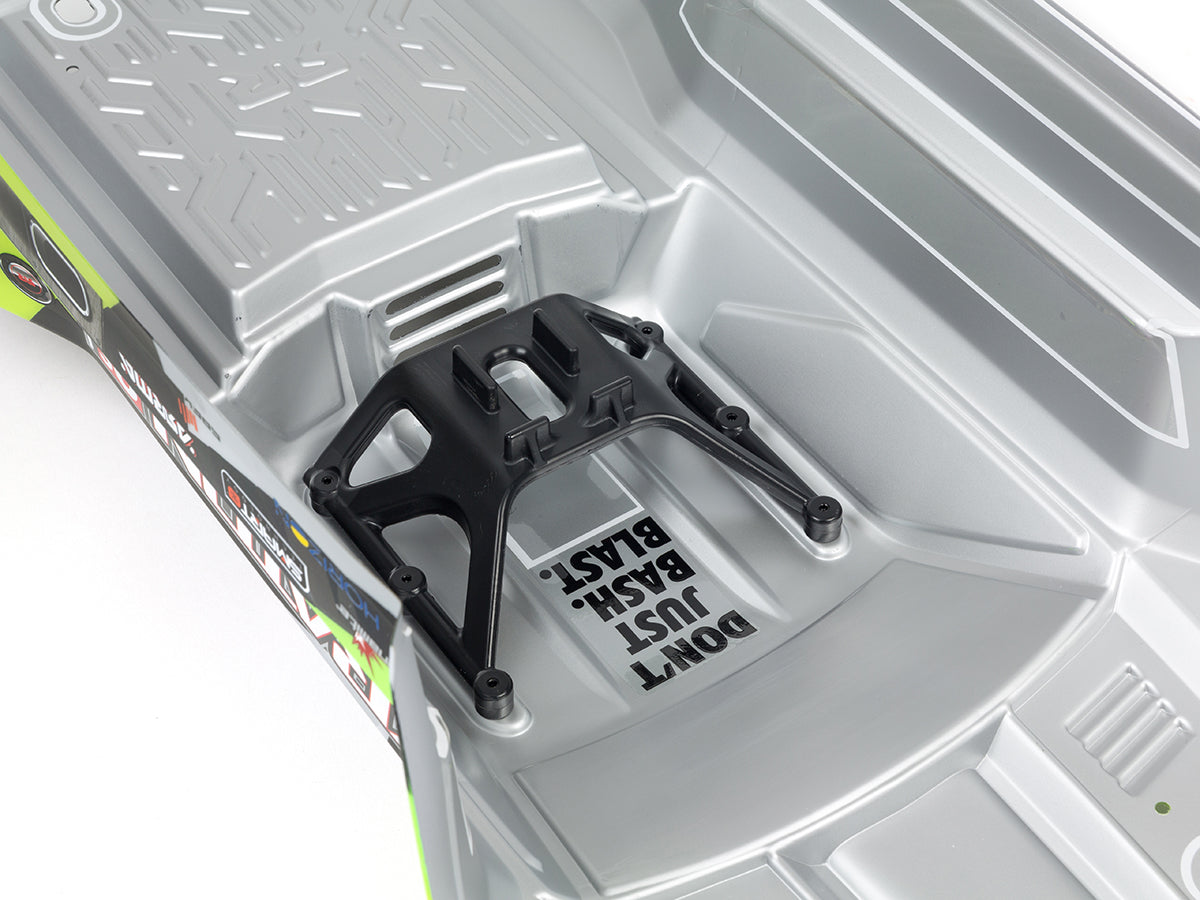

- Integrated internal body protection tower
- Spektrum™ DX3 3Ch DSMR Radio
- Spektrum™ Firma™ 160A Smart ESC
- Spektrum™ Firma™ 1250Kv Brushless Motor
- Spektrum™ S905 Metal-Geared Digital Servo
What's in the Box?
- (1) KRATON™ 8S BLX SPEED Monster Truck
- (1) Spektrum™ DX3 3Ch DSMR Radio
- (1) Spektrum™ Firma™ 160A Smart ESC
- (1) Spektrum™ Firma™ 1250Kv Brushless Motor
- (1) Spektrum™ S905 Metal-Geared Digital Servo [40kg-cm; 556 oz-in @ 7.4V]
- (1) Product Manual
Needed to Complete:
- (2) 4S LiPo Batteries (SPMX50004S50H5 Spektrum™ Smart 14.8V 5000mAh 4S 50C LiPo Hardcase Recommended)
- Compatible Charger (SPMXC1010 Spektrum™ Smart S2100 AC
- Charger 2X 100W Recommended)
- LiPo Charging Bag
- (4) AA Batteries
Full Specs:
- Ball Bearings: Full set
- Batteries: Sold separately, Two Spektrum 4S 5000mAh50C Smart LiPos w/IC5 connector recommended
- Body: Painted decaled and trimmed
- Brakes: Integral with ESC
- Bushing Material: Metal
- Charger: Sold separately
- Chassis: 6061-T6 aluminum 0.16" (4mm) thick
- Completion Level: Ready-To-Run
- Differential: Bevel gear
- Drivetrain: 4WD Shaft Drive
- Final Drive Ratio: 25.06:1
- Gear Pitch: 1.0 Module
- Height: 10.47" (266mm)
- Internal Gear Ratio: 9.06
- Length: 29.92" (760mm)
- Max Battery Dimensions: 5.47 x 1.8 x 1.4" (139 x 46 x 38mm)
- Motor Size: 4985, 1250Kv
- Motor Type: Brushless
- Pinion: 17T
- Radio: Spektrum DX3 3Ch DSMR Radio Set
- Servos: Spektrum S905 high torque metal gear digital heavy-duty steering servo
- Shock Type: Oil-filled coil-over
- Size/Scale: 1/5
- Speed Control: Spektrum Firma 160A Smart
- Spur Gear: 47T
- Suspension: Independent
- Tire Diameter: 7.99" (203mm)
- Tire Tread: dBoots Copperhead 2 SB
- Track: Front and Rear 23.70" (602mm) distance between outer edges of wheels measured side-to-side
- Vehicle Type: Monster truck
- Water-Resistant: Yes
- Weight: 24.2lbs (11kg)
- Wheel Diameter: 4.88" (124mm)
- Wheel Hex Size: 24mm Hex
- Wheel Type: MT, 24mm hex
- Wheel Width: 3.54" (90mm)
- Wheelbase: 19.33" (491mm)
- Width: 23.70" (266mm)
